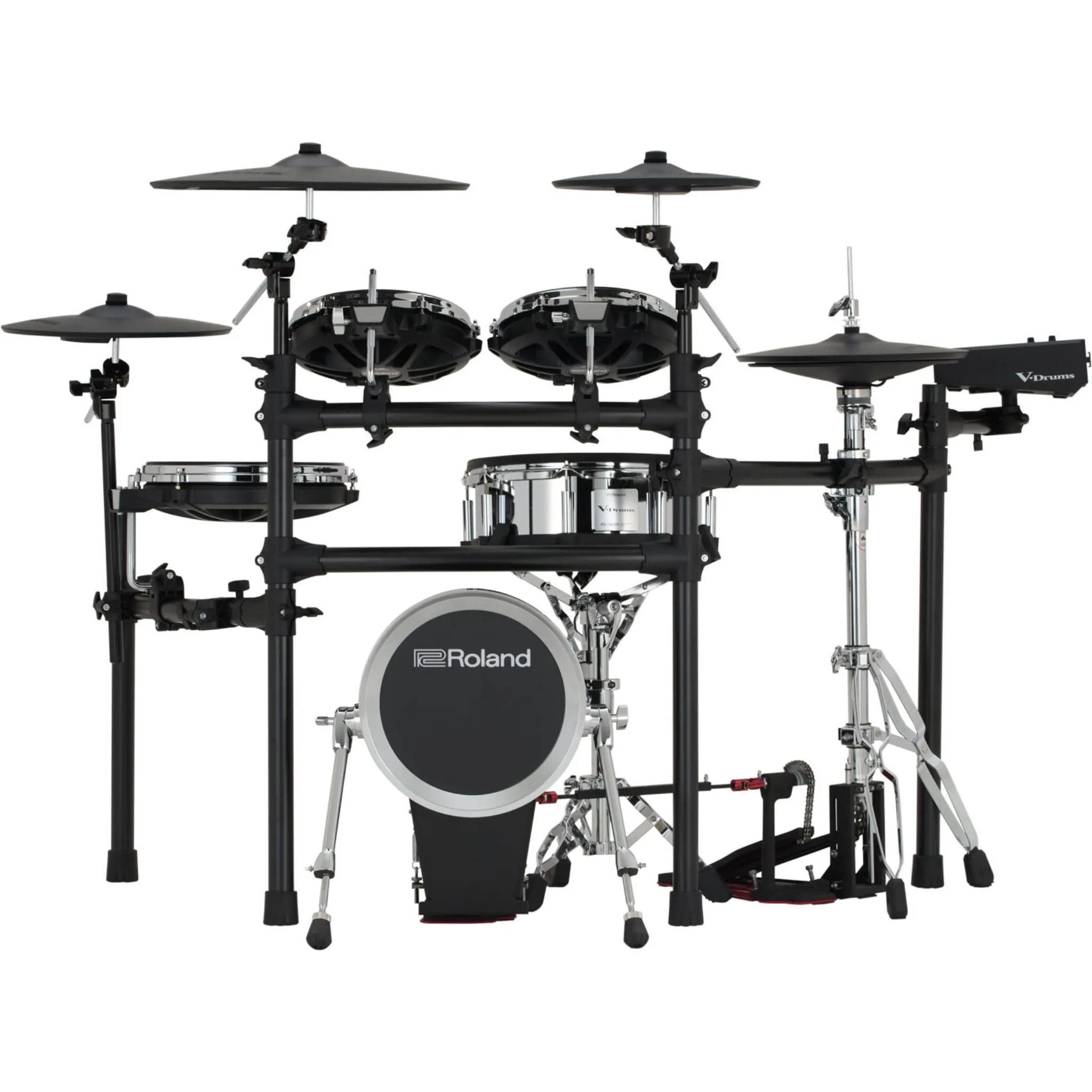

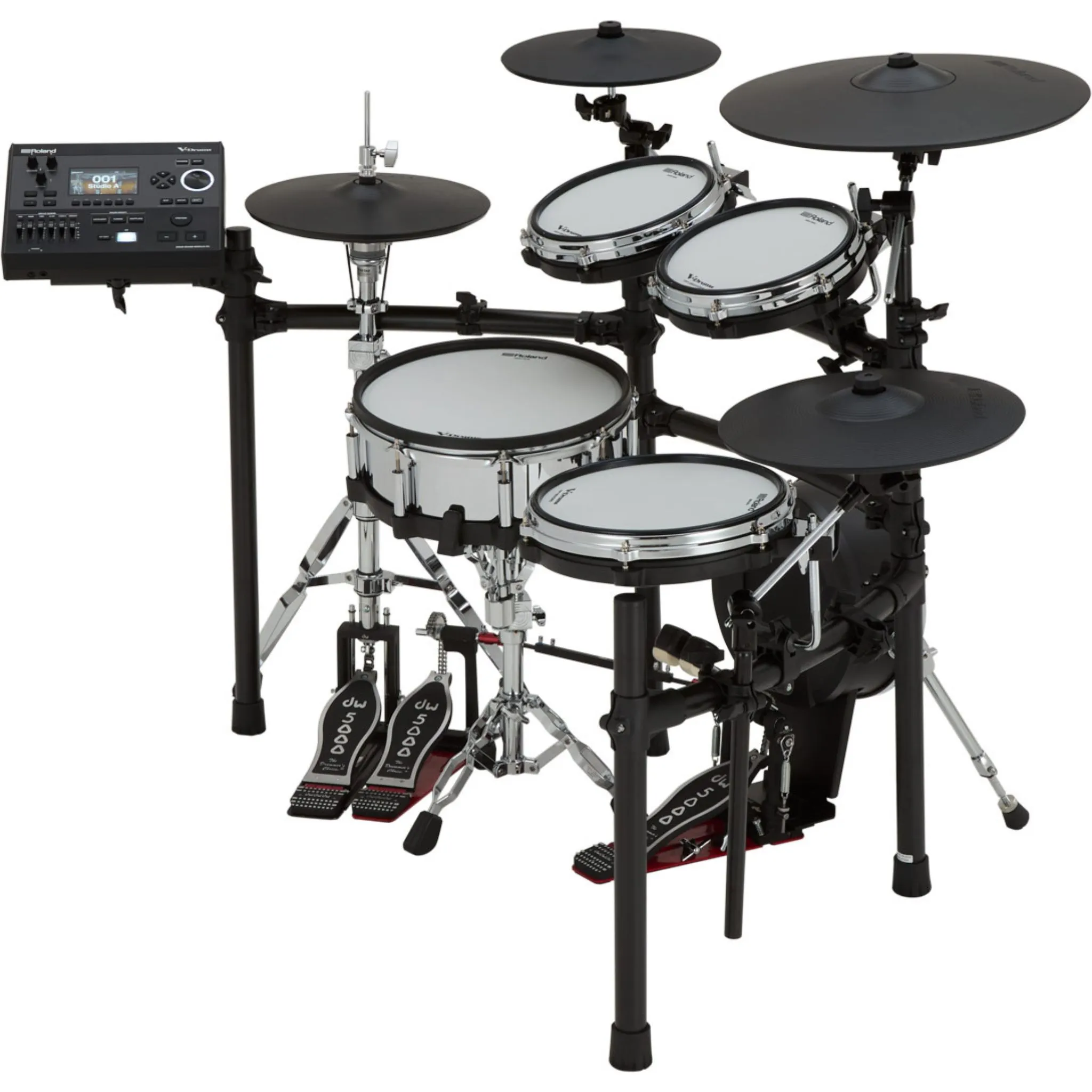

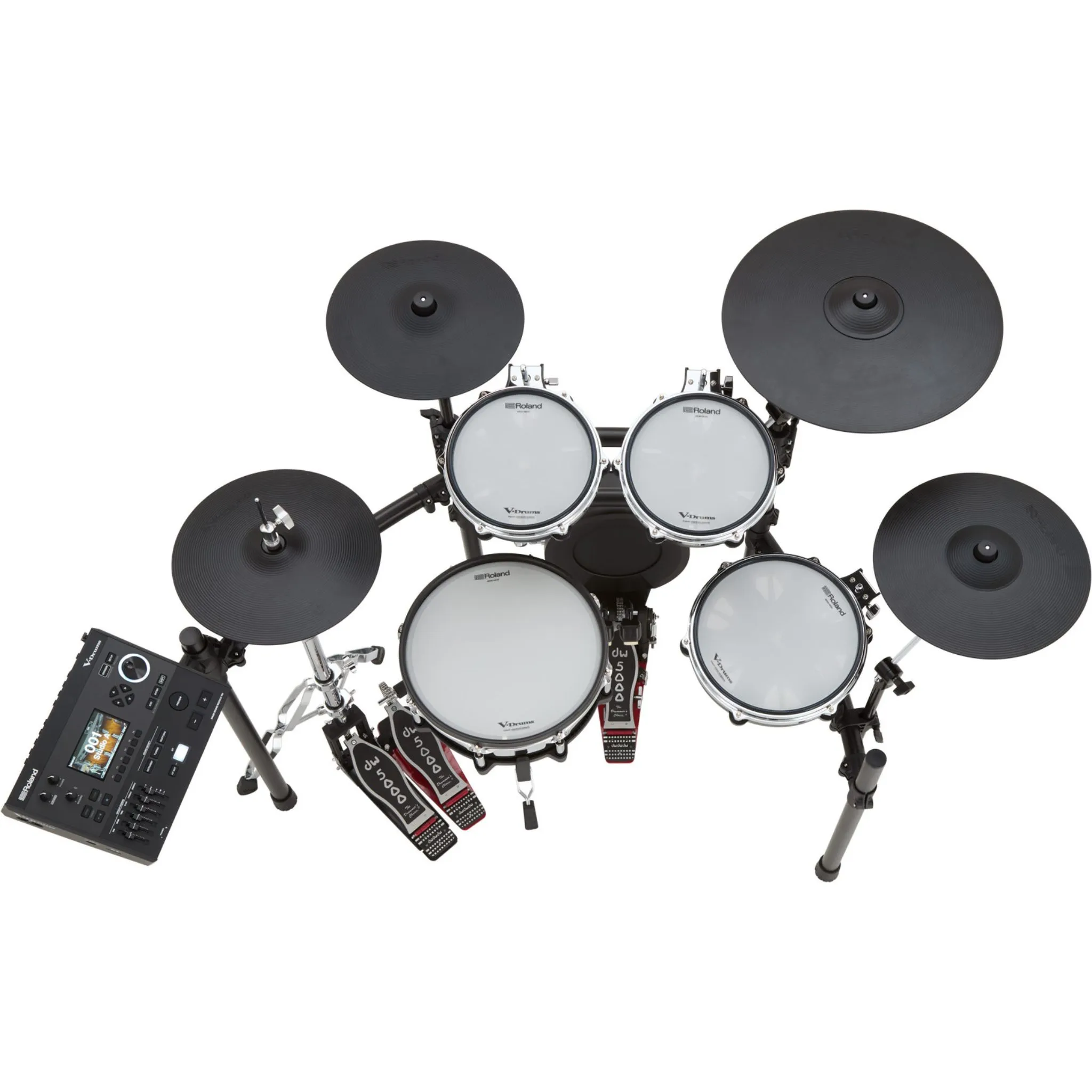

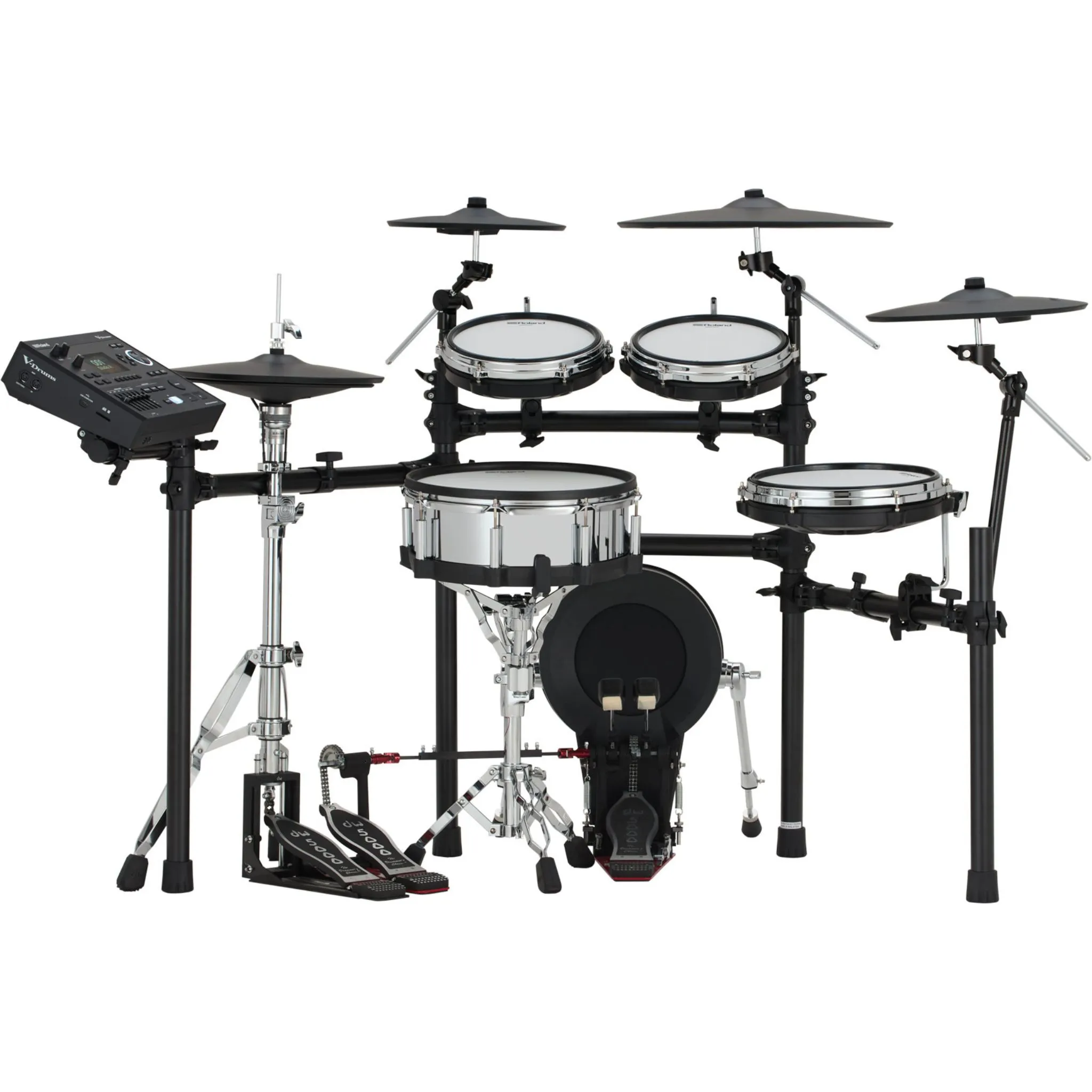

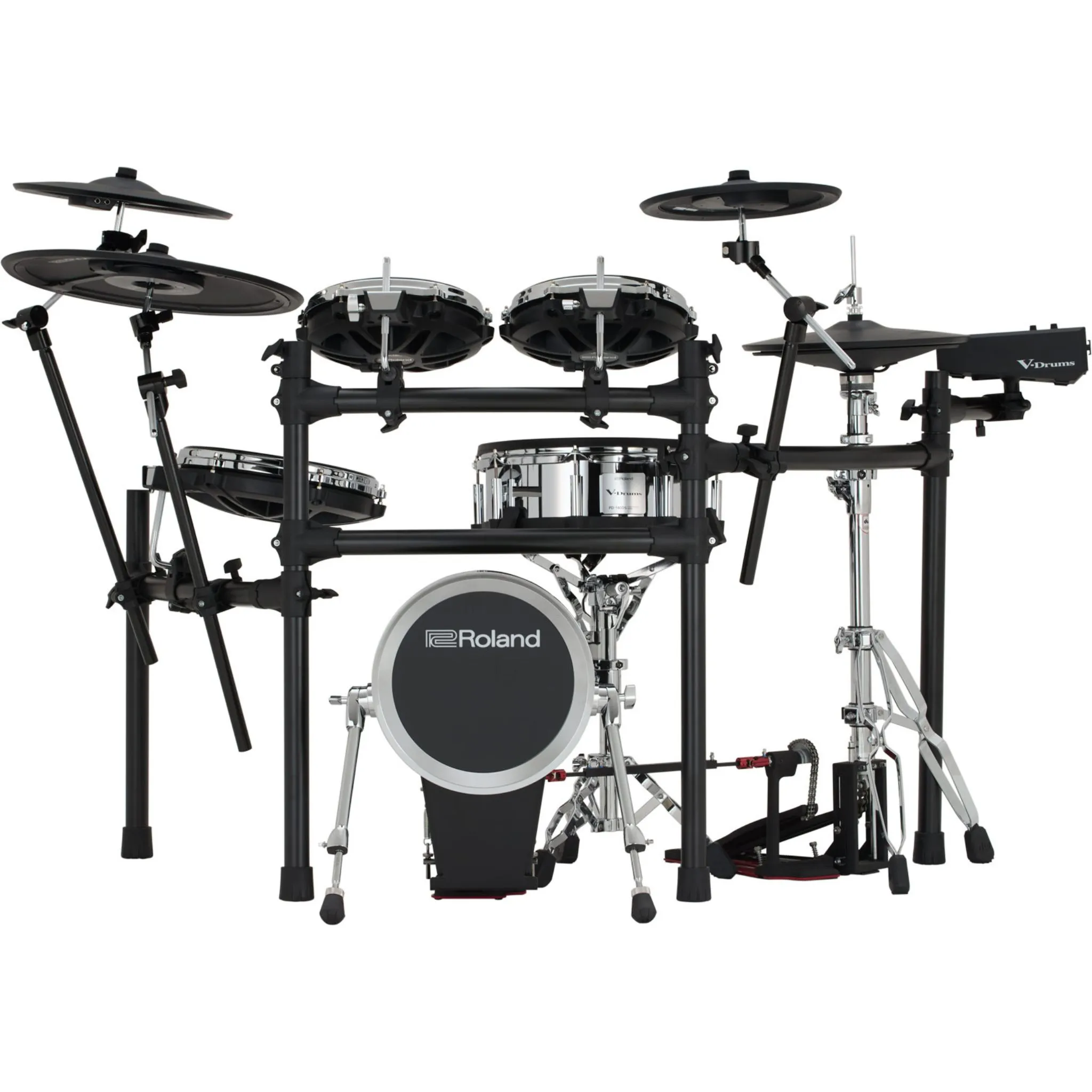

ROLAND TD516 V-Drums Kit

ROLAND TD516 V-Drums Kit – electronic drum kit with V51 module

Roland TD516 electronic drum kit belongs to the V-Drums 5 series. The configuration is based on the V51 sound module, digital snare, digital hi-hat, digital ride, and tom and cymbal pads mounted on a rack.

The V51 module offers a sound library created in cooperation with Drum Workshop, editing tools, and support for digital pads. It allows adjustment of tuning, muffling, head type, effects, and sound parameters of individual kit elements. This makes it possible to adapt the kit response and sound for practice, recording, computer work, and live playing.

The kit uses a digital snare, digital hi-hat, and digital ride, which read articulation, strike position, and playing technique more accurately. The snare supports positional sensing and cross-stick, the hi-hat provides precise open and closed position detection, and the ride offers edge, bow, and bell playing zones plus hand-choke function.

The toms have mesh heads and a construction with chrome hoops. They provide quieter operation than classic rubber pads and a more natural stick rebound. The KD-12 kick pad has a reinforced construction and a 7.5" playing surface, allowing comfortable work on foot technique.

The module supports Bluetooth audio, recording and playback via SD card, USB-C audio/MIDI connection, and import of custom samples. The kit also works with Roland apps and services, including Roland Cloud Connect, V-Drums Play, and V51 Software Companion Editor.

Technical specifications:

• Manufacturer: Roland

• Model: TD516

• Series: V-Drums 5

• Type: electronic drum kit

• Sound module: V51

• Configuration: 5-piece

• Snare drum: 14" digital pad

• Toms: 10" and 12"

• Hi-hat: 14" digital pad

• Crash: 12" and 14"

• Ride: 18" digital pad

• Kick pad: 7.5" playing surface

• Tom heads: mesh

• Rack included: yes

• Bluetooth audio: yes

• USB-C audio/MIDI: yes

• Audio recording and playback: SD card

• Import of custom samples: yes

• Digital pad inputs: 3

• Analog trigger inputs: 4 x 1/4"

• Main output: mono / stereo

• Direct audio outputs: 2

• Analog mix input: 1

• Roland Cloud Ultimate: 6 months included

• Drum Pass: 100 Melodics lessons for V-Drums

Additional information:

The set includes the V51 module, drum pads, kick pad, rack, and cabling for kit setup.

Hi-hat stand, bass drum pedal, snare stand, and drum throne are not included.

The TD516 model works well for drummers who need an advanced electronic kit with digital snare, hi-hat, and ride, but do not need full wooden shells in Acoustic Design style. The kit is suitable for practice, recording, computer work, playing with backing tracks, and regular playing at home, in the studio, and on stage.
